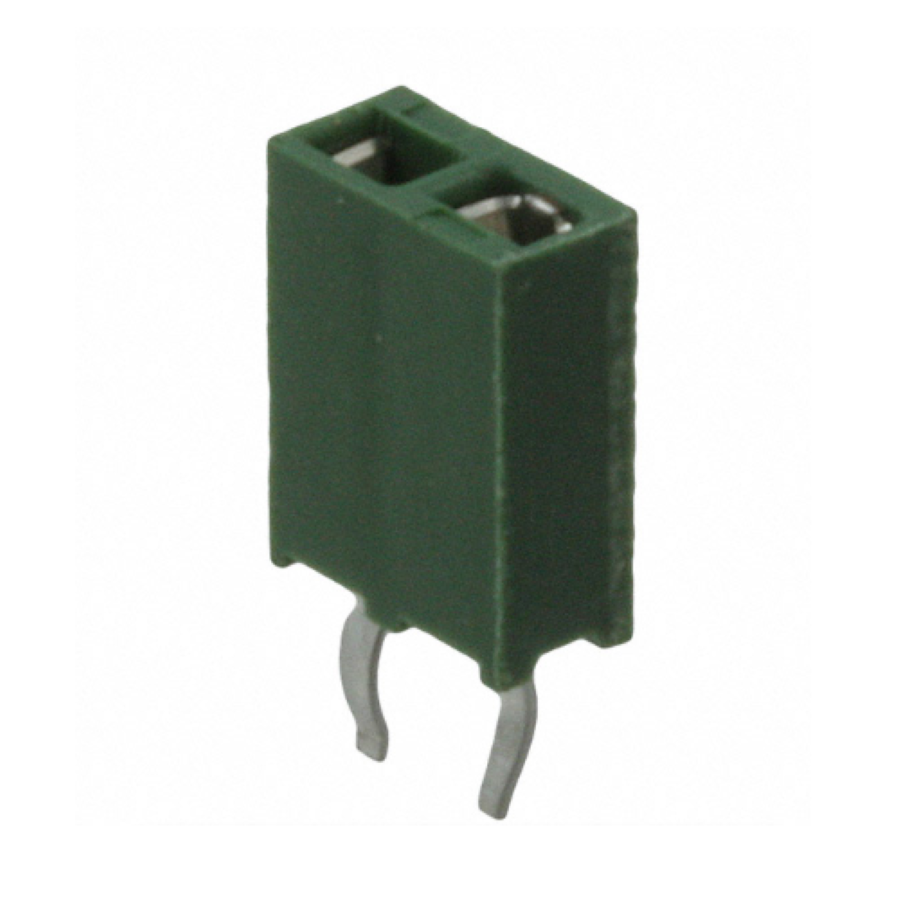

215297-2
Manufacturer:
TE Connectivity
Mfr.Part #:
215297-2
Datasheet:
Description:
Headers and Wire Housings Through Hole Connector, Receptacle, Socket Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 2.52 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Lead Length | 3.1 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Receptacle |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Style | Socket |
| Contact Resistance | 12 mΩ |
| Contact Current Rating | 3 A |
| Housing Color | Black, Green |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6 mm |
| Tail Length | 3.1 mm |
| Contact Gender | Female |
| Stackable | Yes |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 762 nm |
| PCB Mount Retention | With |
Stock: 1277
Distributors
pcbx
pcbxUnit Price$0.53860
Ext.Price$0.53860
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53860 | $0.53860 |
| 10 | $0.45910 | $4.59100 |
| 25 | $0.43329 | $10.83225 |
| 50 | $0.40893 | $20.44650 |
| 100 | $0.38594 | $38.59400 |
| 300 | $0.36424 | $109.27200 |
| 500 | $0.34376 | $171.88000 |
| 1000 | $0.32443 | $324.43000 |
| 3000 | $0.30619 | $918.57000 |
| 5000 | $0.28898 | $1444.90000 |
| 10000 | $0.27273 | $2727.30000 |
